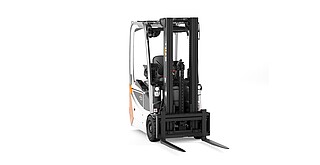

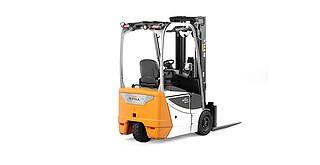

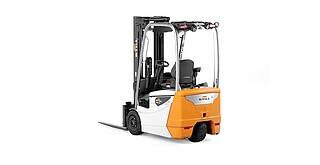

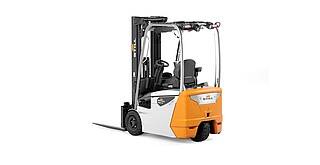

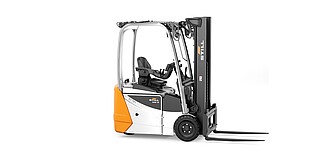

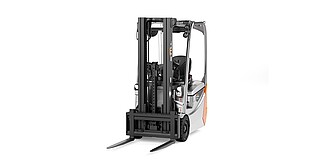

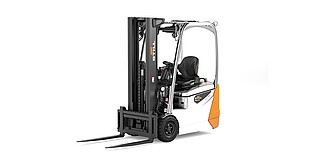

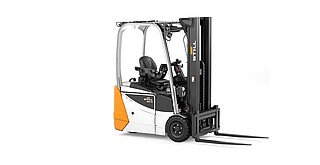

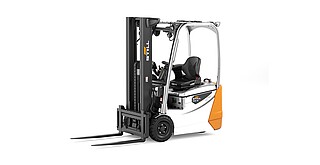

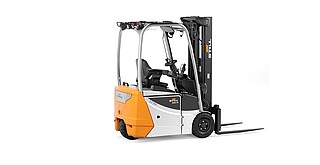

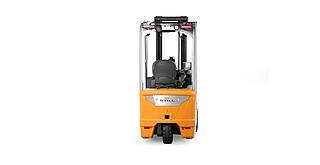

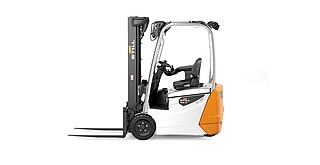

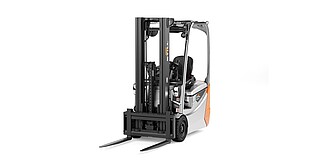

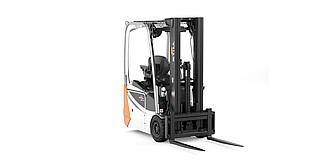

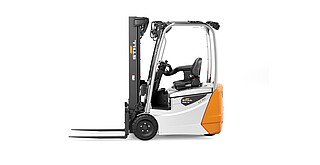

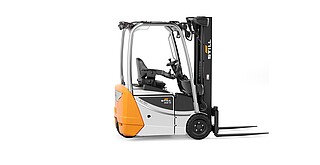

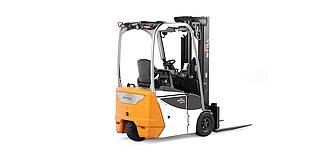

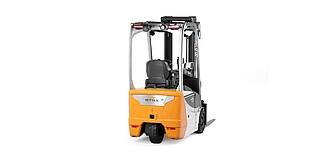

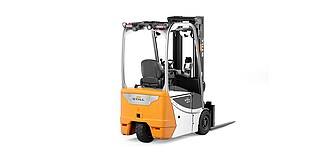

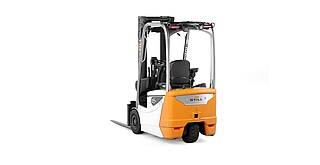

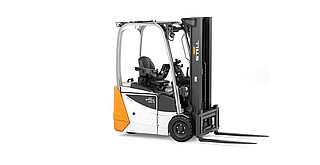

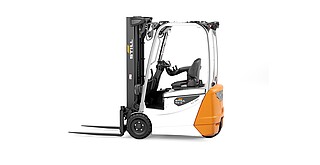

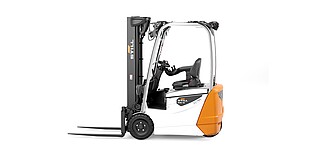

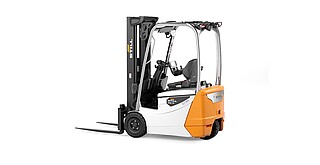

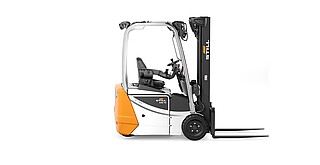

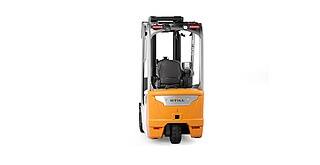

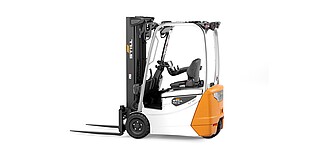

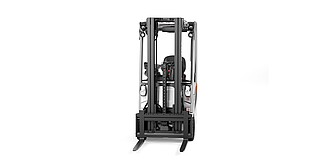

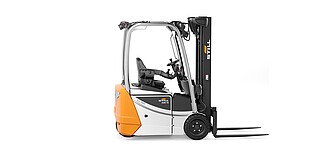

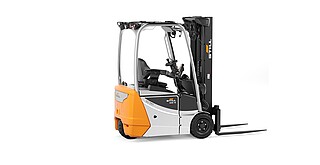

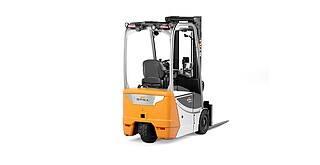

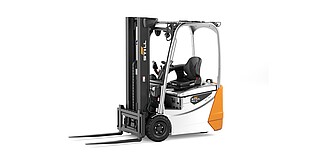

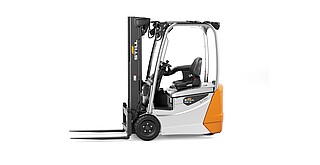

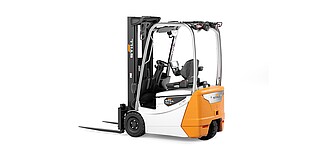

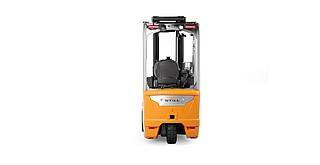

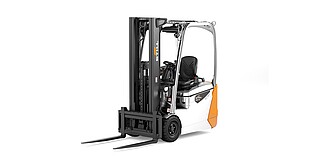

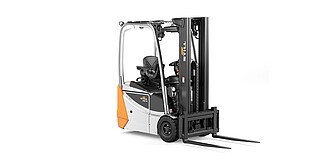

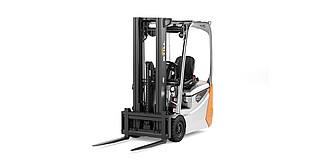

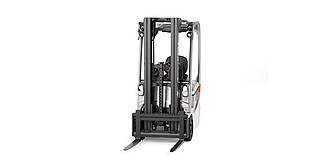

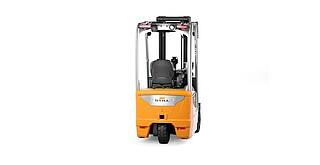

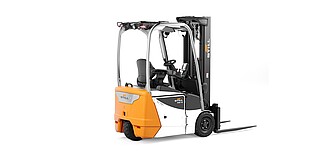

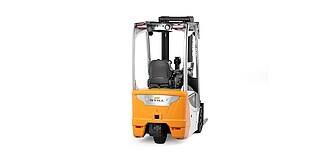

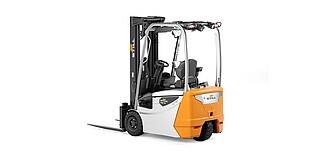

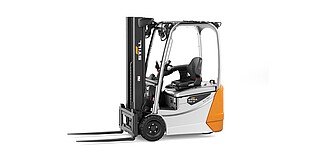

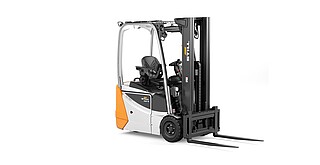

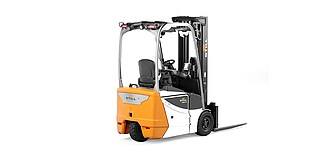

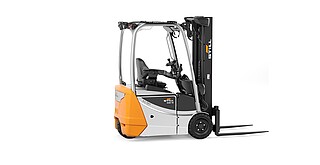

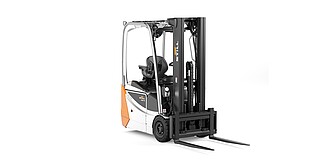

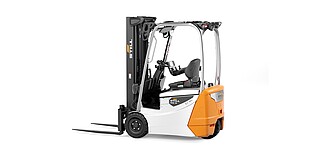

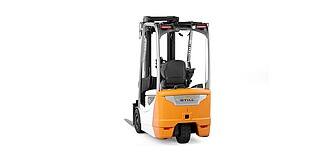

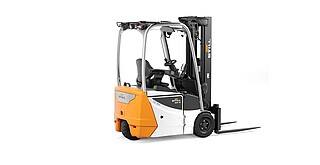

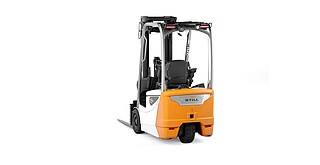

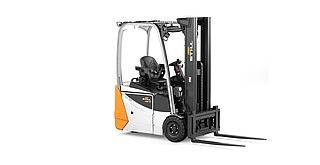

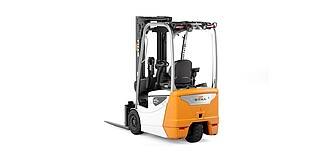

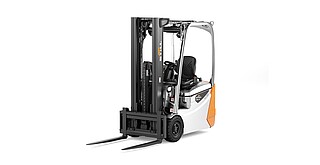

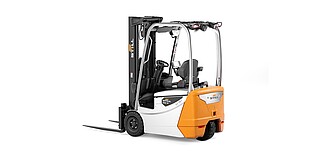

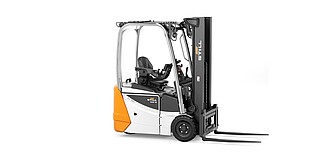

Electric forklift truck RXE 10 – 16C

The zippy one

Load capacity 1600 kg
Rated lift 6810 mm
Speed 12 km/h

Great in the smallest of spaces

Turn it any way you want, the RXE 10–16C simply fits. Always. The youngest and smallest member of the electrifying STILL electric forklift truck family is one of the greatest in terms of performance: compact as it is, it shines with a perfect balance of driving comfort, manoeuvrability and safety – even when things get really tight. Be it in HGVs, containers or narrow aisles, the RXE 10–16C is incomparably efficient and agile in the smallest of spaces thanks to its compact dimensions and sensitive steering. And that is precisely why it is so versatile.

Whether it is in the food industry, at logistics service providers, in production supply or in joint warehouses of large retailers, the compact three-wheel counterbalanced forklift truck inspires as an efficient helper for loading and unloading HGVs or containers as well as for transporting pallets in the warehouse. With a top speed of 12.5 km/h, it gets a lot done very quickly. And to ensure that not a single moment of its electrifying dynamics is lost for safety reasons, it is equipped with the proven Curve Speed Control as standard. This keeps you safely on track at all times – even in the tightest of curves. So when it comes to moving 1.0 to 1.6 tonnes in a space-saving way, the RXE 10-16C is the perfect choice! With its wide range of equipment options and assistance systems, it is also an attractive upgrade from the high lift stackers, with increased comfort and added safety. All this makes it the perfect successor to the legendary STILL RX 50, one of the best-selling electric forklift trucks in its class ever. Proof that the RXE 10–16C fits the bill. Always.

Non-binding offer

Non-binding rental offer

Rent

Non-binding rental offer

Our used trucks offer

Buy used

Our used trucks offer

Taotlege RXE 10 – 16C

Palun täitke allolev vorm. Me võtame teiega ühendust niipea kui võimalik.

Doesn't fit – doesn't exist.

What makes our small compact package so great for you are its sensationally slim dimensions. With a height of just under 2 meters and a width of 1 meter, it may not fit in every pocket, but it will certainly fit through every door. That makes it particularly valuable wherever space is limited. Whether in trucks, containers or narrow work aisles, thanks to its extremely sensitive controls, the RXE 10-16C can be maneuvered precisely and safely anywhere – even when you're fully using its maximum lifting height of almost 7 meters. The RXE 10-16C fits. Always.

Perfection in confined spaces: →

Perfection in confined spaces:

compact truck dimensions and extremely high manoeuvrability allow for working in narrow aisles.

Safely to the top. Without flinching with the fork.

The RXE 10-16C lifts half a ton to almost 7 meters. That's quite a feat for a small truck this size. This is possible thanks to the particularly low vehicle center of gravity and the extra rigid design of the mast. They ensure that the truck is stable and safe in every situation. Of course, the same should also apply to you: To ensure that you always stand up well and safely at work, you can choose from a wide range of smart driver assistance systems and functions for your RXE.For example, you can be supported in your work by a highly visible warning light system, time-saving lift height preselection or reliable overload measurement. Once you have experienced how electrifyingly easy it is to operate, you will never want to miss out on it again. The RXE 10-16C fits. For sure.

Dynamic on the track. Safe in the curve. →

The family. It's nice to know each other. →

The family. It's nice to know each other.

If you already use other vehicles in our RX family, you'll get along with our smallest right away. That's a promise! In the proven family tradition, it has inherited the ergonomically comfortable driver's workplace, the innovative operating concept and the smart STILL Easy Control on-board computer from its successful big brothers.An advantage that is particularly noticeable for you as a driver: You can easily switch between different load capacities. Simply get into another truck. That's it. You are immediately familiar with the vehicle and can concentrate fully on your job. A familiarity that only exists in the family - and which contributes significantly to safety in the warehouse. The RXE 10-16C fits. In the family.

The RXE 10 – 16C in detail

The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency

Simply easy

Familiar, intuitive handling
thanks to the uniform operating concept across the RX electric forklift truck family

Relevant information and performance functions
clearly available in STILL Easy Control Bordcomputer

Perfection in confined spaces:
compact truck dimensions and extremely high manoeuvrability allow for working in narrow aisles

Always available
thanks to the lateral quick-charge access for optional lithium-ion batteries

Simply powerful

Powerful and reliable
thanks to maintenance-free rotary current drive in 24 V technology

Impressive productivity
thanks to a lifting capacity of up to 1.6 tonnes with a load centre of 500 mm

Effective material handling
thanks to a maximum driving speed of 12 km/h when laden

Supports the driver
with smart assistance functions

Ready at all times
thanks to the optional lithium-ion technology

Simply safe

Safe and precise handling:
high-precision hydraulics and agile driving dynamics

Optimal all-round visibility
thanks to slim mast and visibility-optimised protected roof bars

Systematic safety
thanks to the (optional) daily pre-shift check in the display

Maximum safety at work
thanks to individually configurable equipment options – from indicators to Safety Light 4Plus safety lighting and curve speed control

Safe load handling
thanks to numerous assistance functions such as lift height display and overload detection

Simply flexible

Individual control options for optimal driver comfort:
multi-lever, mini-lever, Fingertip or Joystick 4Plus

Perfect for any application
thanks to a flexible portfolio with a wide range of equipment options

Flexible use in forklift truck fleets thanks to the uniform operating concept across the RX series:
drivers can switch between RXE 10–16C, RX 20 and RX 60 easily and without training time

Simply connected

Can be optimally networked via an optional interface,
which allows for uncomplicated integration into fleet management systems such as STILL neXXt fleet

Controlled use and protection against incorrect operation
thanks to optional access control

STILL Li-Ion Technology inside

The perfectly harmonised power system for reducing operating costs and increased truck availability.

More about STILL Li-Ion Technology

Applications

Always fits!

It fits in every aisle – and probably even through every door. Its sensationally compact dimensions of just two by one meter make the RXE extremely mobile and flexible in use – in addition to warehouses, for example, it can also be used in trucks or containers.

Compact dimensions

No matter how limited its working range – the RXE can be controlled particularly precisely and sensitively. Forward, backward and with beautiful turns on the spot.

Best views for the driver

... in all directions. Really in all directions. Thanks to the slim mast and sight-optimized protective roof beams, the operator even has a clear view upwards to the fork tips at a height of seven meters.

Watch out – this is my dance area!

The STILL warning zone light projects eye-catching light strips onto the ground next to the vehicle – in the Plus version also behind it. The most charming way to keep other vehicles and passers-by at a distance and effectively minimize the risk of accidents.

Taotlege RXE 10 – 16C

Palun täitke allolev vorm. Me võtame teiega ühendust niipea kui võimalik.

Media Centre

{{ filteredVideos.length }} Videos

Model Overview

Model	Maximum capacity (kg)	Maximum lift height (mm)	Travel speed (km/h)	Battery voltage (V)
RXE 10	1.000	5.610	12	24
RXE 13	1.300	6.060	12	24
RXE 15	1.500	6.810	12	24
RXE 16C	1.600	6.810	12	24

Downloads

Data Sheet RXE 10–16C PDF, 3 MB Download

Manual RXE 10–16C PDF, 59 MB Download

The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
